SAXS WAXS

SAXS WAXS – Xenocs, Your Access To The Nanoscale In The Lab

Xenocs, Your Access To The Nanoscale In The Lab. Optimize Your Materials Properties With Fast Nanostructure Answers.



Source	Microfocus sealed tube: Cu, 30W/30µm, point focus. ( DIN EN 12543-5) Polychromatic Copper microfocus source for imaging a field of view of 14 mm x 14 mm. MetalJet D2+ 70 kV source (Ga). Motorized Dual or Triple source (Cu/Mo/Cr/Ga).
Optics	Patented 3D single reflection multilayer optics.
Detector	In-vacuum motorized 3-axis detectors for 2D SAXS/WAXS (Q-Xoom): --Eiger2 R (500K, 1M or 4M) hybrid photon counting detectors Optional WAXS detectors for SWAXS: --Motorized 3-axis Eiger2 R 500K hybrid photon counting detector
Sample chamber	Large vacuum chamber. On-axis sample viewing (parallax free). Attachments for operation of sample in air. XL station: Dedicated air-space tailored for accommodating extra-large sample environments
Key features	Clean Beam technology: High flux and low background beamline. Beamstopless measurement: SAXS acquisition continuously without any beamstop. Q-Xoom: Automatic change of measurement configuration over all instrument Q-range with no movement of sample measuring position and automatic callibations. Virtual detector mode: Surfaces of detection > 200 mm x 200 mm.
Measurement capability	Nanoparticles size up to 250 nm, 500 nm or 900 nm in diameter depending on the Xeuss model. Nanoparticles size up to > 2.5 microns with optional motorized Bonse-Hart module for automatic sequential USAXS/SAXS/WAXS measurements. Nanoparticles sizes down to 50 nm can be measured using the AuX source on spot sizes of 150 microns and with measuring times in the range of a minute or less. Scattering measurements up to 2Ɵ > 70° with Q-Xoom. Qmax > 49 nm-1 The X-ray imaging option extends the range of structural information from Å to mm while the Dark-field and Phase-contrast imaging (DF-PCI) option reveals nanostructure differences, interfaces and orientation.
Sample environment	Standard holders (multi-samples): solids, capillaries, powders and gels. Flowcells for liquids: --- Low noise flowcell --- Capillary flowcell --- Automatic Sample Changer --- BioCube measuring cell with dynamic monitoring (compatible with pipetting robot) Temperature stages: --- Multi-purpose X-Ray temperature stage (-30°C to 150°C) --- High temperature sample stage (-150°C to 350°C) --- Extended high-temperature sample stage (ambient to 1000°C) Mechanical stress stages: --- Tensile Stage (0 N to 600N). --- Couette stage for shear SAXS. --- Cryo-Shear Cell (-50°C to +450°C). Humidity stage (5% to 95% humidity at temperatures ranging from 10°C to 70°C). Temperature compatible advanced GISAXS stage with incidence angle control and additional rotation for texture or in-plane scattering analysis Other sample stages available under request
Software	Comprehensive Software Suite: Xplore: command and control software for intuitive data acquisition with automatic data reduction in absolute units and live data display providing also real-time equipment monitoring and scripting capabilities from any programming language. XSACT Pro (X-ray Scattering Analysis and Calculation Tool) for data analysis and interpretation including unique modules for particle shape determination through direct modeling or AI-powered classification.
General parameters	Models & Footprint: Xeuss Pro C (1 m x 3.5 m), HR (1 m x 5 m), UHR (1 m x 8 m). Maximum power consumption: 4.8kW (single phase power)


Mirror type	Figure	Optic efficiency (calculated over mirror length for 70µm source)
Standard Montel mirrors		Eff = 42%
Xenocs FOX 3D mirrors		Eff = 62%


Model	Beam size at focus (mm) with 60 µm source	Divergence (mrad)	Typical application
FOX 3D Cu 14-39 (♦)	0.19 x 0.19	5.4	Protein crystallography (♦) Powder diffraction
FOX 3D Cu 12-53	0.3 x 0.3	3	Protein crystallography (Long Unit Cells) Powder diffraction
FOX 3D Mo 10-31	0.13 x 0.13	4	Small molecule crystallography High pressure diffraction
FOX 3D Ag 10-30	0.13 x 0.13	3	Small molecule crystallography High pressure diffraction
FOX 3D Cr 8-30	0.20 x 0.20	6	Protein crystallography (S-SAD) Stress analysis
FOX 1D Cu 12-53	0.3	3	XRD, Powder Diffraction


Model	Beam size at focus (mm) with 60 µm source	Divergence (mrad)	Typical application
FOX 2D Mo 25-25 (♦)	0.08 x 0.08	5	Small mollecule crystallography High pressure crystallography
FOX 2D Cu 25-25 (♦)	0.08 x 0.08	5.3	Protein crystallography (♦) Micro Diffraction, Reflectometry
FOX 3D Cu 21-21 HC (♦)	0.08 x 0.08	70 x 35	Rapid x-ray Reflectometry (full beam) Scanning x-ray Reflectometry (with slit) Micro-XRF
FOX 3D Cu 28-10	0.04 x 0.04	17	Stress Analysis, Micro-diffraction, Micro-XRF
FOX 3D Cr 30-8	0.04 x 0.04	17	Stress Analysis, Micro-diffraction, Micro-XRF


Model	Beam size at focus (mm) with 60 µm source	Divergence (mrad)	Typical application
FOX 2D Cu 12-INF (♦)	1.2 x 1.2	1	Small angle x-ray scattering (♦) High resolution x-ray diffraction (♦) Surface scattering (♦) Thin film analysis (reflectometry stress) (♦) Microdiffraction on synchrotron (♦)
FOX 2D Mo 25-INF (♦)	0.85 x 1.3	0.5	Small angle x-ray scattering High resolution x-ray diffraction Surface scattering
FOX 2D 12-60 L (♦)	0.18 x 0.2	0.5 x 2	High resolution diffraction Small sample analysis
FOX 1D Cu 12-INF (♦)	1.2	0.8	High resolution x-ray diffraction, Powder diffraction, Reflectometry, Small angle x-ray scattering


Model	Beam size at focus (µm)	Divergence (mrad)	Flux (ph/sec)	Typical application
GeniX 3D Cu High Flux *	< 190	6	> 400 x 10⁶	Protein crystallography Micro stress analysis Powder diffraction
GeniX 3D Mo High Flux	< 130	5	> 25 x 10⁶	Small Molecule crystallography High pressure
GeniX 3D Cr High Flux	< 190	6	> 300 x 10⁶	Stress Analysis
GeniX 3D Cu High Convergence *	60	70 x 35	> 400 x 10⁶	Rapid X-ray Reflectometry (full beam) Scanning x-ray reflectometry (with slit) Micro x-ray fluorescence Small spot diffraction on thin film
GeniX 3D Cu Low Convergence *	< 250	3	> 120 x 10⁶	Small Angle X-ray Scattering Protein Crystallography


Model	Detailed specifications
Synchrotron scatterless slits (♦)	Please contact us for any technical information Discover what our customers say about it!
X-ray alignment camera (♦)	Please contact us for any technical information
Pin Diode detector (♦)	Please contact us for any technical information
Beam stop with integrated Pin Diode	Please contact us for any technical information


BioXolver configurations	BioXolver	BioXolver L
Utilisation	Research on biological macro-molecules in solution	Research on biological macro-molecules, including large complexes and interactions

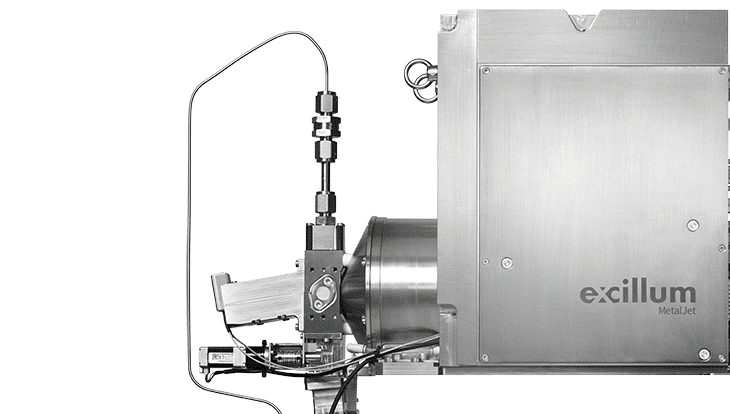

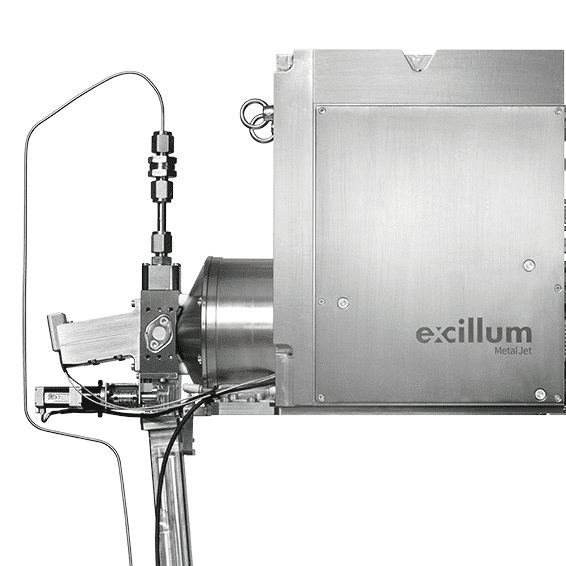

X-ray source	Microfocus GeniX 3D, MetalJet, add-on to RAG	0.02-0.3nm
Optic	Aspheric single reflection multilayer optic
Collimation	Motorized scatterless point collimation	variable
Sample cell	Xenocs thermalized BioCube flow-cell with camera and pump
Sample handling	Pipetting robot with disposable tips
Sample capacity	Up to 2 x 96 well plates (thermalized)
Minimum sample volume	Down to 5 μL
Cleaning	Automated cleaning and drying with three cleaning fluids
Detector	Dectris in-vacuum hybrid pixel photon counting detector
Detector configuration	Fixed detector distance	Variable detector distance
Data reduction and analysis software	RAW and ATSAS
Q-range and typical protein size*	0.006 Å-1 / MW < 200 MDa / Rg < 135 Å	0.003 Å-1 / MW < 1.5 GDa / Rg < 270 Å
Overall length	3.2 m (2.7 m as add-on to existing source)	4.2 m
Options	UV-Vis, separate temperature control for sample trays and BioCube	UV-Vis, separate temperature control for sample trays and BioCube
Services	Installation, training, hot-line, maintenance contract	Installation, training, hot-line, maintenance contract



Source and optics	Microfocus sealed tube: Cu, 30W/30µm, point focus. ( DIN EN 12543-5) Patented 2D single reflection multilayer optics.
Detector	Dectris Pilatus 3 hybrid photon counting detectors. Two fixed detectors for continuously and simultaneously. SAXS and WAXS acquisition up to 2θ=60°.
Beam Path	Windowless beam path entirely under vacuum from beam delivery system to detector sensor
Key features	Clean Beam technology: high flux and low background beamline. Beamstopless measurement: SAXS acquisition continuously without any beamstop. Virtual detector mode: > 200° azimuth coverage with rotation of sample.
Measurement capability	Nanoparticles size up to 250 nm in diameter.
Sample environment	Standard holders: solids, capillaries, powders. Sample holders for powders and gels. Flow cells for liquids: --- Low noise flow cell --- Capillary flow cell Automatic Sample Changer Temperature stages: --- Multi-purpose X-Ray Temperature Stage (-20°C to 150°C) --- High temperature sample stage (-150°C to 350°C) --- Extended high temperature sample stage (amb - 700°C) Tensile Stage (0-200N). GiSAXS stage compatible with high temperature sample stage. Custom stages on request.
Software	Acquisition software with automatic data reduction in absolute units and live data display. XSACT (X-ray Scattering Analysis and Calculation Tool) for data analysis and interpretation.
General parameters	Fooprint: < 1x1 m². Weight: ~ 520 kg. Maximum power consumption: < 2000 W (single phase power). Self-contained: no external fluids required.
Warranty	Two years warranty and three years on X ray source.


Element of interest	Reference
O, F, Na, Mg, Al, Si, P, S	XAN-1
Nitrogen	XAN-2
Carbon	XAN-3
Boron	XAN-4
Mg, Al , Si	XAN-5
Be	XAN-6
